SD DUO BIO

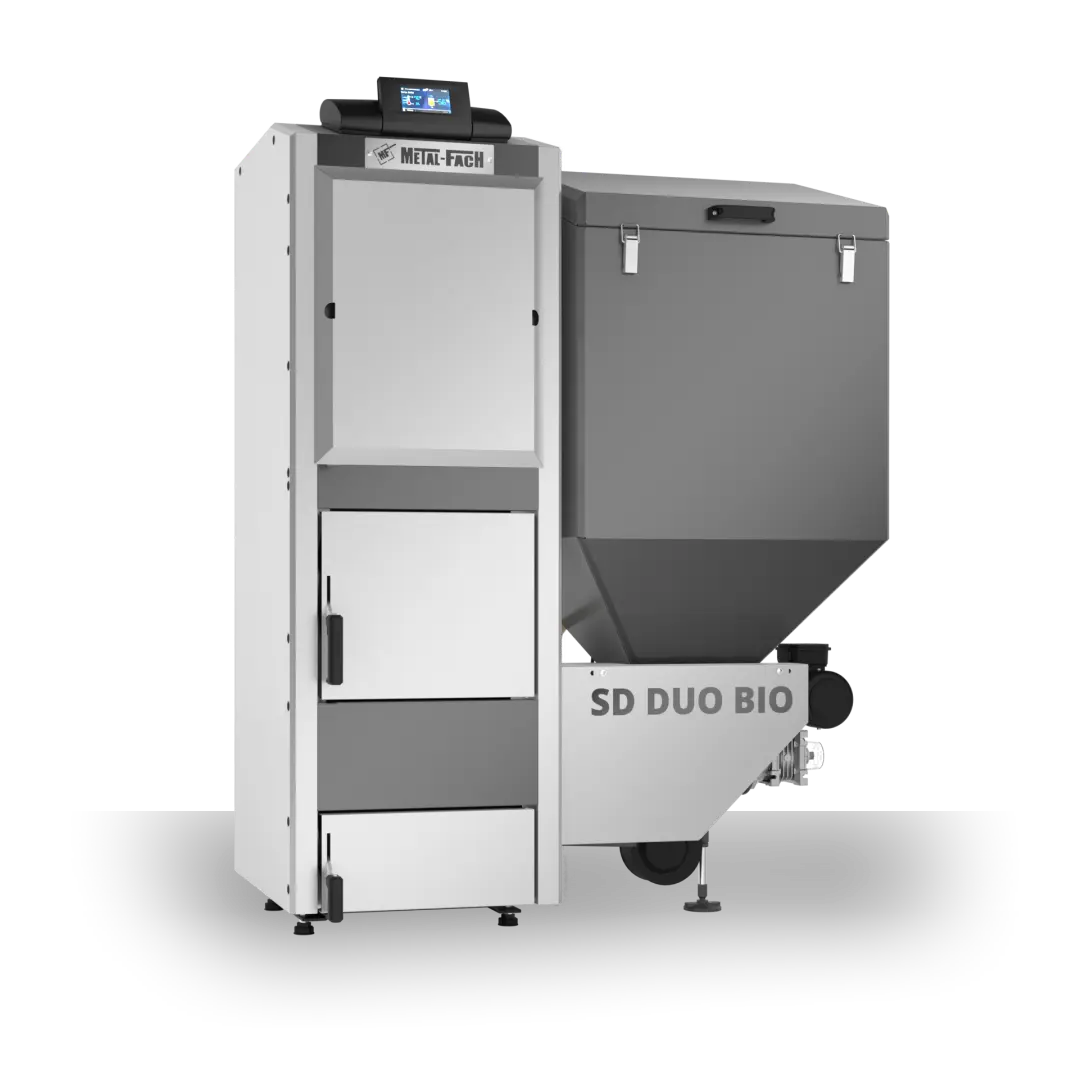

SD DUO BIO 16 34 P METAL FACH Technika Grzewcza
SD DUO BIO 16 34 L METAL FACH Technika Grzewcza

Available powers

16-34kW

Fuel

Pellet

Energy class

A+

Guarantee

5 yearsextended*

General information

The SD DUO BIO 16-34kW boiler is a compact and modern heating device, designed for efficient heating of single-family houses and commercial facilities. Thanks to advanced wood pellet combustion technology in accordance with the 303-5: 2021-09 standard, the device ensures high energy efficiency while minimizing emissions of harmful substances into the atmosphere. The product has been awarded the EcoDesign Certificate and has a 5th boiler class, which confirms its compliance with the latest ecological and energy standards in force in the European Union. Additionally, the manufacturer provides a 5-year warranty* on the boiler, which proves the high quality and reliability of the device.

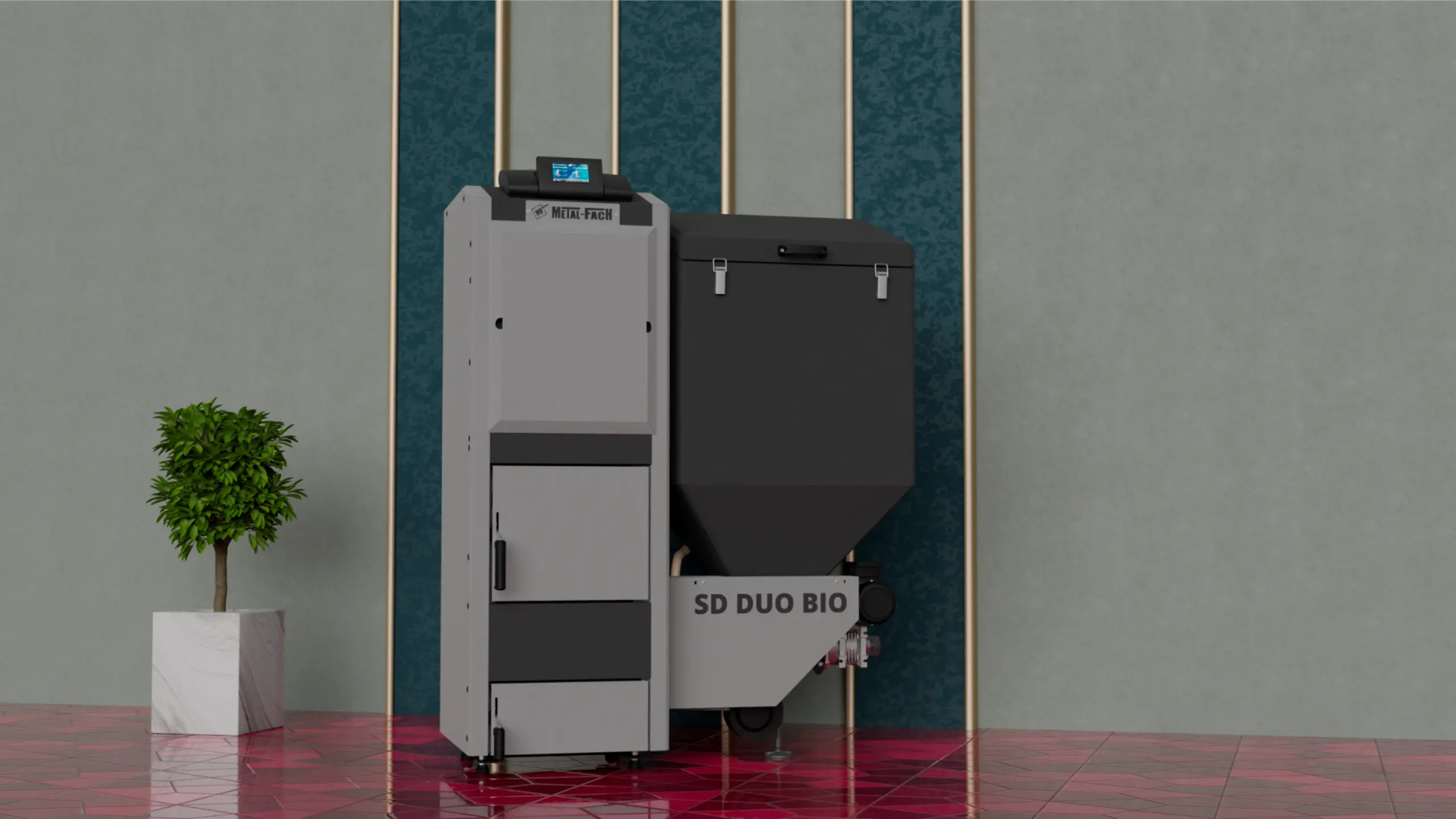

SD DUO BIO 16 34 – METAL FACH Technika Grzewcza wiz1
2025 Logo EcoDesign
2025 Logo 5 Class angielska
2025 Logo TUV Rheinland METAL FACH Technika Grzewcza
2025 5 year warranty
5-year warranty (extended)*: Basic warranty 2 years, extendable to 5 years. Detailed information on warranty conditions can be found in the technical documentation.

SD DUO BIO

16-34kW

Do you have a question about our offer?

Contact our representative.

Contact section
On-line form

User comfort

Automation of processes such as fuel feeding or automatic fuel igniter makes our device an intelligent support in daily boiler operation. Thanks to automation of these processes, operation is simple and does not require your involvement in daily operation of the device.
SD DUO BIO 16 34 przekroj METAL FACH Technika Grzewcza
1. Automatic feeder
2. Door limit switch
2. Tank flap limit switch
3. Swirlers
4. Convection channels
5. Smoke outlet
6. Fireman
(at the back of the tank)
7. Exhaust gas guide

Construction of a central heating boiler

Automatic feeder

The automatic feeder feeding pellet fuel is an element that significantly increases the comfort of using the boiler. Its main features are:

  • Maintenance-free fuel supply - pellets are automatically transported from the tank to the burner, eliminating the need for manual feeding.
  • Quiet and smooth operation - solid construction and high-quality mechanisms ensure reliability and minimize noise.
  • Time saving - the large capacity of the tank allows for long-term operation of the boiler without the need for frequent fuel refilling.

The automatic feeder guarantees the continuity of the combustion process and optimal boiler efficiency, with minimal involvement on the part of the user.

Limit switch

The boiler is equipped with a limit switch. The safety devices are located in the boiler door and in the tank flap. Each time the door is opened, the burner and other boiler elements are automatically stopped until they are closed again.

Swirlers

Swirlers are a solution that:

  • Increases heat exchange efficiency - swirlers cause turbulence in the exhaust gases, which improves heat transfer to the water jacket.
  • Reduces fuel consumption - better heat exchange means lower energy losses and more economical operation of the boiler.

Horizontal convection channels | shelf

Efficient design adapted for quick cleaning of the exchanger from the front. The construction of the boiler exchanger ensures high heat collection from the furnace.

Flue outlet at the back of the boiler

The boiler design has been designed in such a way that the flue outlets are located at the back of the boiler. The use of such a solution allows for the flue to be led directly to the chimney.

Firefighter

Protects the fuel in the boiler tank from ignition.

Exhaust gas guide

Slows down the exhaust gas outlet, stopping and burning it in the combustion chamber.
ATTENTION!
Any interference with the boiler’s design is prohibited and will void the warranty. Attempts to install additional grates or components that allow the combustion of fuels other than those specified by the manufacturer are prohibited.

Ecology and savings

Using pellets as fuel is not only about caring for the natural environment, but also about real savings in heating costs thanks to the high efficiency of the boiler. As a user, you also have a guarantee of the availability of this fuel, because Poland is one of the main suppliers of this fuel in Europe and in the world.

Pellet burner

The SD DUO BIO 16-34kW boiler is equipped with a pellet gutter burner. The burner has been designed for maximum combustion efficiency and minimizing harmful emissions. The gutter burner is adapted to burn wood pellets compliant with the 303-5:2021-09 standard.
The Gutter burner uses an automatic ceramic igniter that offers:

  • Fast ignition – the igniter reaches high temperatures in a short time.
  • Long service life – high resistance to temperature and mechanical wear.
    Palnik na pellet Rynnowy Metal Fach Technika Grzewcza

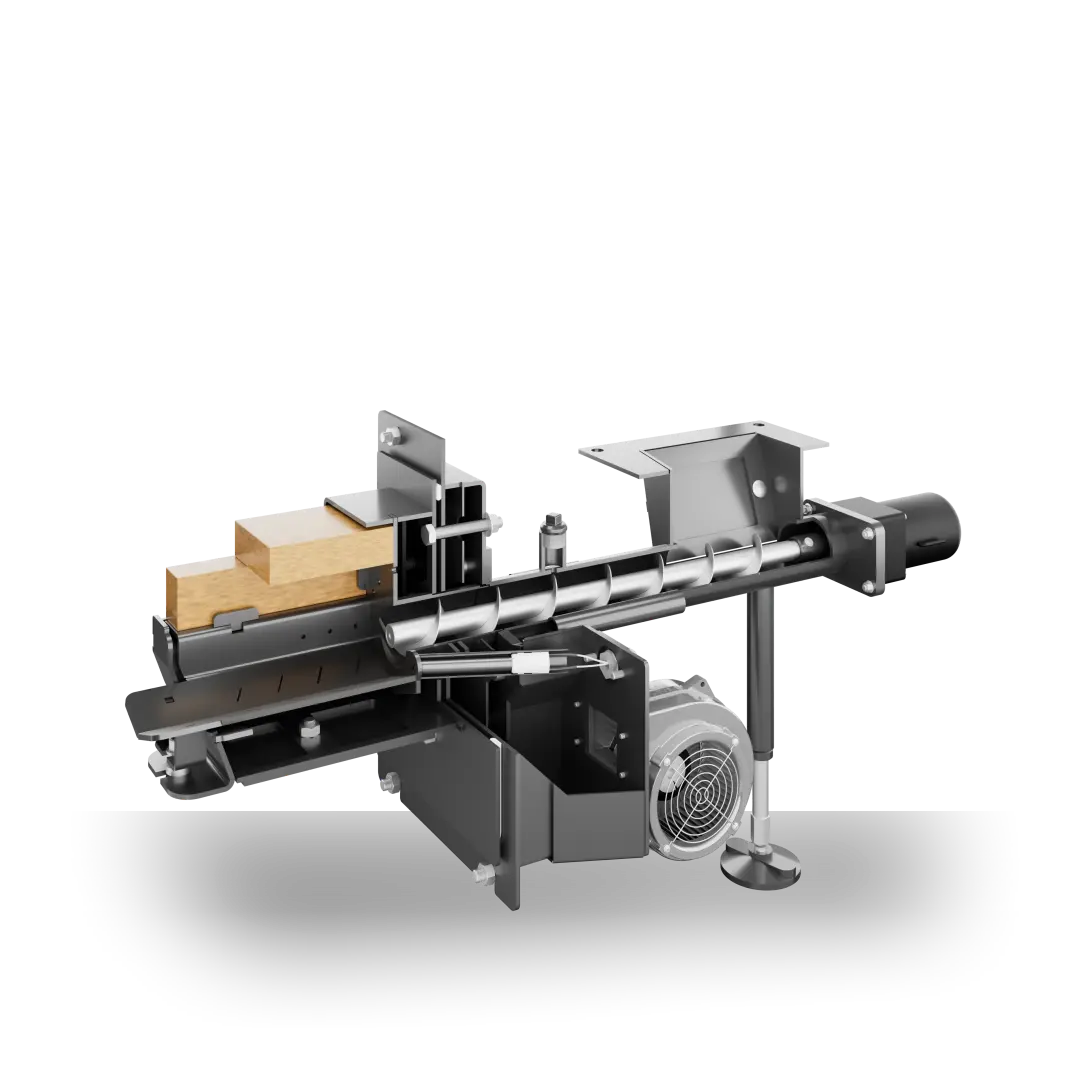

    Palnik na pellet Rynnowy przekroj Metal Fach Technika Grzewcza

    Gutter Burner

    SD DUO BIO 16 34 przekroj METAL FACH Technika Grzewcza

    Modern control

    The intuitive PLATINUM PELLET controller enables precise management of the boiler operation. Optional accessories, such as the ecoNET300 Internet Module, and the ecoNET24 application provide real-time monitoring of device information and device control via the Internet.

    Controls

    PLATINUM PELLET Controller

    The PLATINUM PELLET controller is the heart of the boiler management system. Equipped with an intuitive interface with a color touch screen, it allows easy and precise setting of the device’s operating parameters. The device supports:

    • One mixing circuit C.O.1 with a room thermostat – allows for precise adjustment of the heating water temperature and rooms.
    • Pump (C.W.U., C.O., additional) – manages additional heating zones such as underfloor heating or domestic hot water control.
    • RTC clock – allows programming of the weekly boiler operation schedule.
    • Weather control – allows programming of boiler operation modes depending on the weather or time of day.
    • FuzzyLogic & PID – monitors the boiler operation, allows for current viewing of operating parameters and diagnostics of possible irregularities.

    The controller is also compatible with the ecoNET300 internet module, which allows for remote control of the boiler using a smartphone or computer from anywhere.

    Sterownik PLATINUM PELLET zewnetrzny Metal Fach Technika Grzewcza

    Accessories for central heating boilers

    Gain the opportunity to expand comfort, safety of use, as well as service and technical support in your METAL-FACH Heating Technology boiler. We offer our customers access to many additional elements that allow you to adapt our device even more to the needs of your home or boiler room. You can order them directly from us or at the point of purchase of the central heating boiler from our distributor. Adjust the heating of your home and the operation of the boiler to your needs.

    Equipmentadditional

    Modul Internetowy econet300 Metal Fach Technika Grzewcza

    ecoNET300 Internet Module

    The ecoNET300 Internet Module is a modern device that allows remote control of the boiler via the Internet. Thanks to the dedicated application, the user has full access to monitoring the boiler's operating parameters, temperature settings and the heating system's operating schedule.

    Learn more
    Termostat pokojowy PLATINUM TOUCH x40 Metal Fach Technika Grzewcza

    Platinum Touch x40 Room Thermostat

    The Platinum Touch x40 room thermostat is an elegant, touch-sensitive device that allows for precise temperature management in your home. Equipped with a large, clear display, it provides intuitive operation and weekly programming.

    Learn more
    Termostat pokojowy PLATINUM TOUCH x80 Metal Fach Technika Grzewcza

    Platinum Touch x80 Room Thermostat

    Platinum Touch x80 is an advanced version of the thermostat, offering even greater programming and control options for the heating system. It has a larger touch screen and additional functions, such as control of several heating circuits or the ability to integrate with smart home systems.

    Learn more
    Termostat pokojowy PLATINUM eSTER x100 Metal Fach Technika Grzewcza

    Platinum ecoSTER100 room thermostat

    The Platinum ecoSTER100 thermostat allows you to remotely control your boiler from a convenient user interface. The device not only regulates the temperature in rooms, but also controls the operation of heating circuits and utility water.

    Learn more
    Modul rozszerzen ecoMAX 360B Platinum BiC Metal Fach Technika Grzewcza

    ecoMAX 360B Expansion Module – Platinum B/C

    The B/C expansion module enables control of additional heating circuits, pumps and actuators. It is an ideal solution for installations requiring flexible management of multiple heating zones in a building, providing full control over the heat in different rooms.

    Learn more
    Sonda Lambda Metal Fach Technika Grzewcza

    Lambda Sensor

    The Lambda Sensor is an advanced device for controlling the combustion process, which automatically optimizes the amount of air supplied to the combustion chamber.

    Learn more

    Technical data

    Parameters

    Parameter

    Nominal thermal power [kW]
    Fuel
    Water capacity [l]
    Fuel tank capacity [l]
    Fuel tank capacity [kg]
    Boiler weight [kg]

    SD DUO BIO 16

    16
    wood pellets in accordance with the standard 303-5:2021-09
    78
    300
    180
    460

    SD DUO BIO 20

    20
    wood pellets in accordance with the standard 303-5:2021-09
    84
    300
    180
    475

    SD DUO BIO 28

    28
    wood pellets in accordance with the standard 303-5:2021-09
    90
    300
    180
    495

    SD DUO BIO 34

    34
    wood pellets in accordance with the standard 303-5:2021-09
    100
    300
    180
    520
    More parameters can be found in the boiler manual DTR.

    Emissions / Efficiency

    Parameter

    Seasonal emission of particulate matter [mg/m3]
    Efficiency for nominal power [%]
    Nominal emission of particulate matter [mg/m3]
    Efficiency for minimum power [%]
    Minimum emission of particulate matter [mg/m3]

    SD DUO BIO 16

    14
    -
    -
    -
    -

    SD DUO BIO 20

    26
    90,1
    26
    89,1
    26

    SD DUO BIO 28

    14
    -
    -
    -
    -

    SD DUO BIO 34

    10
    90,1
    13
    90,7
    9

    Certificates

    Parameter

    Ecodesign (Eko Project)
    Boiler Class
    Energy Class

    SD DUO BIO 16

    Yes
    5
    A+

    SD DUO BIO 20

    Yes
    5
    A+

    SD DUO BIO 28

    Yes
    5
    A+

    SD DUO BIO 34

    Yes
    5
    A+

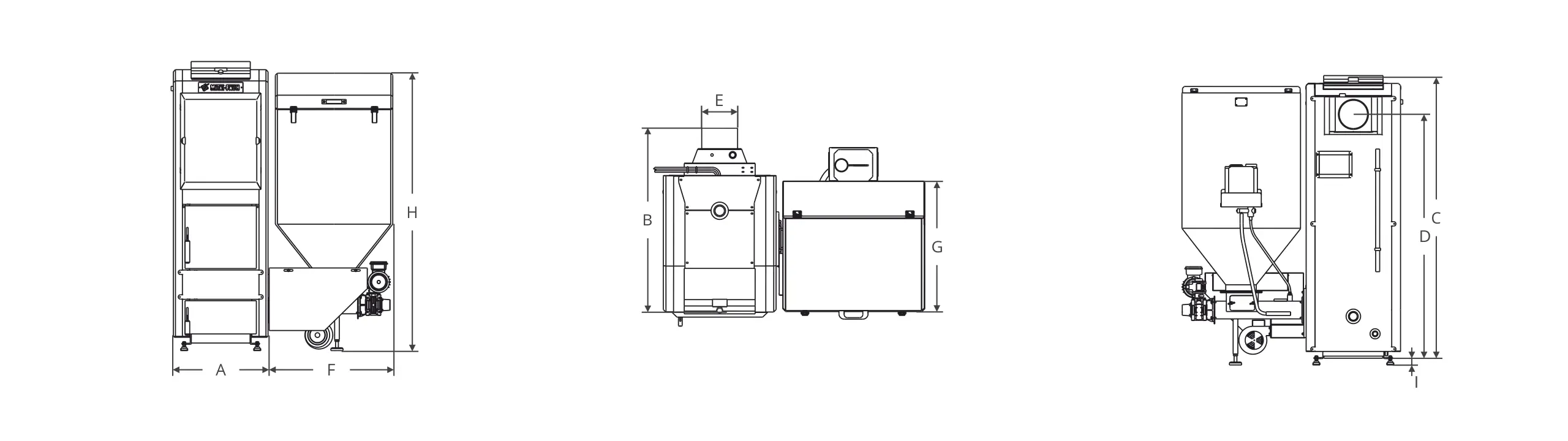

    Rysunek techniczny SD DUO BIO 16 34 METAL FACH Technika Grzewcza

    Dimensions

    Dimensions

    "A" Boiler width [mm]
    "B" Boiler depth [mm]
    "C" Boiler height [mm]
    "D" Height to flue [mm]
    "E" Flue diameter [mm]
    "F" Tank width [mm]
    "G" Tank depth [mm]
    "H" Tank height [mm]
    "I" Adjustment of feet height [mm]

    SD DUO BIO 16

    541
    830
    1665
    1400
    180
    680
    595
    -
    30

    SD DUO BIO 20

    541
    880
    1665
    1400
    180
    680
    595
    -
    30

    SD DUO BIO 28

    541
    930
    1665
    1400
    180
    680
    595
    -
    30

    SD DUO BIO 34

    591
    930
    1665
    1400
    200
    680
    595
    -
    30
    More parameters can be found in the boiler manual DTR.

    Documentation

    Instructions

    Certificate

    Energy label

    Product card 2015/1187

    Product card 2015/1189

    • iKP 2015/1189 - SD DUO BIO 16
    • iKP 2015/1189 - SD DUO BIO 20
    • iKP 2015/1189 - SD DUO BIO 28
    • iKP 2015/1189 - SD DUO BIO 34

    Contact with advisor

    METAL-FACH Technika Grzewcza Sp. z o.o. reserves the right to introduce changes to technical parameters, equipment and specifications of the goods offered without prior notice.
