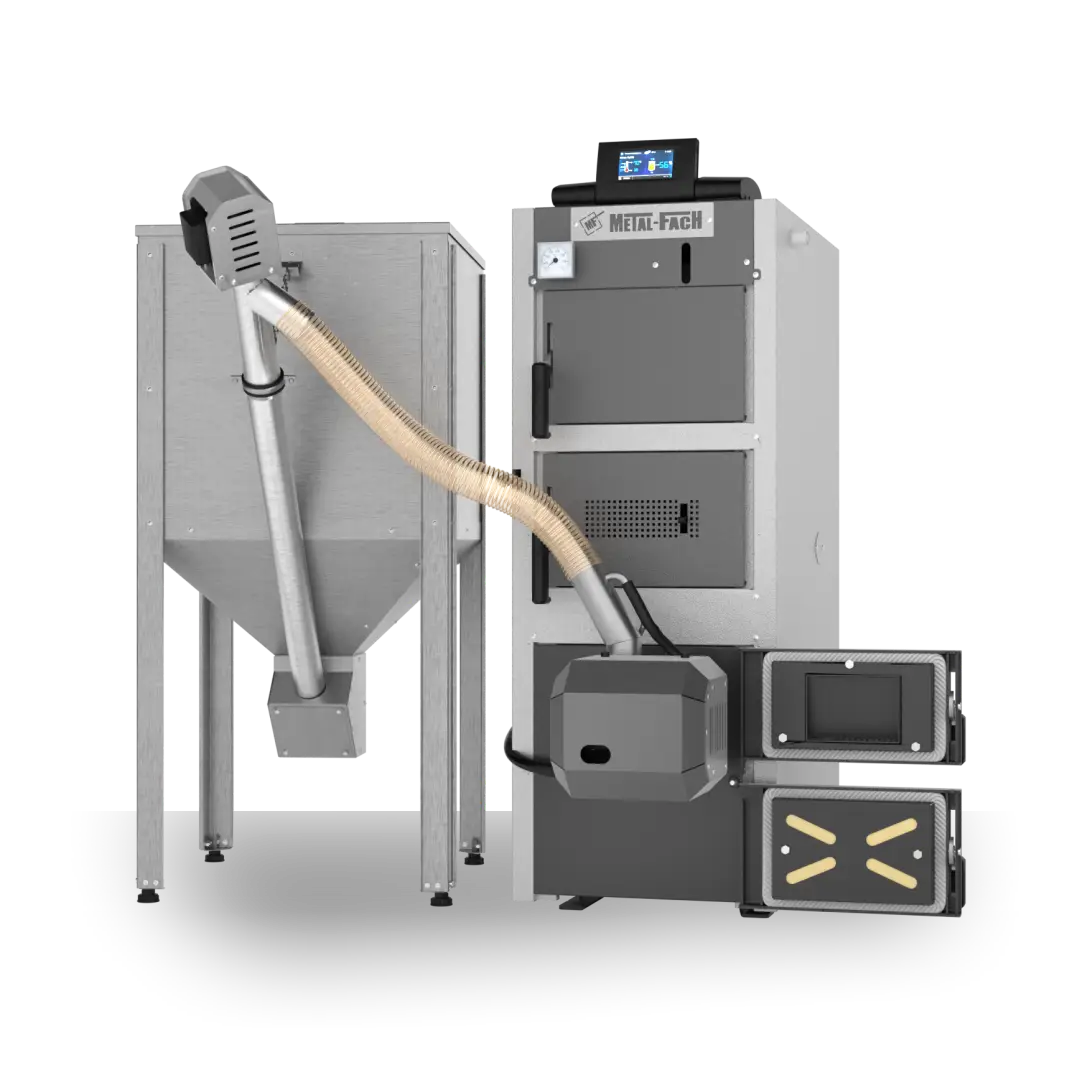

SEMAX BASIC DUO
Available powers
15-20kW
Fuel
Firewood or Pellets
Energy class
A+
Guarantee
5 yearsextended*
General information
The SEMAX BASIC DUO 15-20kW boiler is a modern and ecological solution designed for efficient heating of single-family homes and smaller commercial facilities. The device combines two independent heat sources, an advanced wood gasification process and automatic combustion of wood pellets compliant with the 303-5: 2021-09 standard. This design provides flexibility in fuel selection, allowing you to adjust the heating to current needs and fuel availability. An additional advantage of the boiler is its hopper, which can be placed on any side, which makes it easy to adapt to small boiler rooms. The product has been awarded the EcoDesign Certificate and has a 5th boiler class, which confirms its compliance with the latest ecological and energy standards in force in the European Union. Additionally, the manufacturer provides a 5-year warranty* on the boiler, which proves the high quality and reliability of the device.
5-year warranty (extended)*: Basic warranty 2 years, extendable to 5 years. Detailed information on warranty conditions can be found in the technical documentation.
SEMAX BASIC DUO
15-20kW
Do you have a question about our offer?
Contact our representative.
Comfort of use
Thanks to intelligent technical solutions, the boiler ensures comfortable operation both during pellet and wood combustion. Automation of processes, such as pellet fuel feeding or automatic burner cleaning, means that daily operation of the device requires minimal involvement. In the case of wood combustion, the gasification chamber allows for high efficiency with relatively easy and quick lighting. As a result, the user has a convenient, safe and effective source of heat at their disposal in every situation.
1. Automatic feeder
2. Flue gas temperature sensor
3. Swirlers
4. Convection channels
5. Smoke outlet
6. Exhaust fan
7. Secondary air intake
7. Primary air intake
7. Smoke extraction flap
9. Ceramic plates

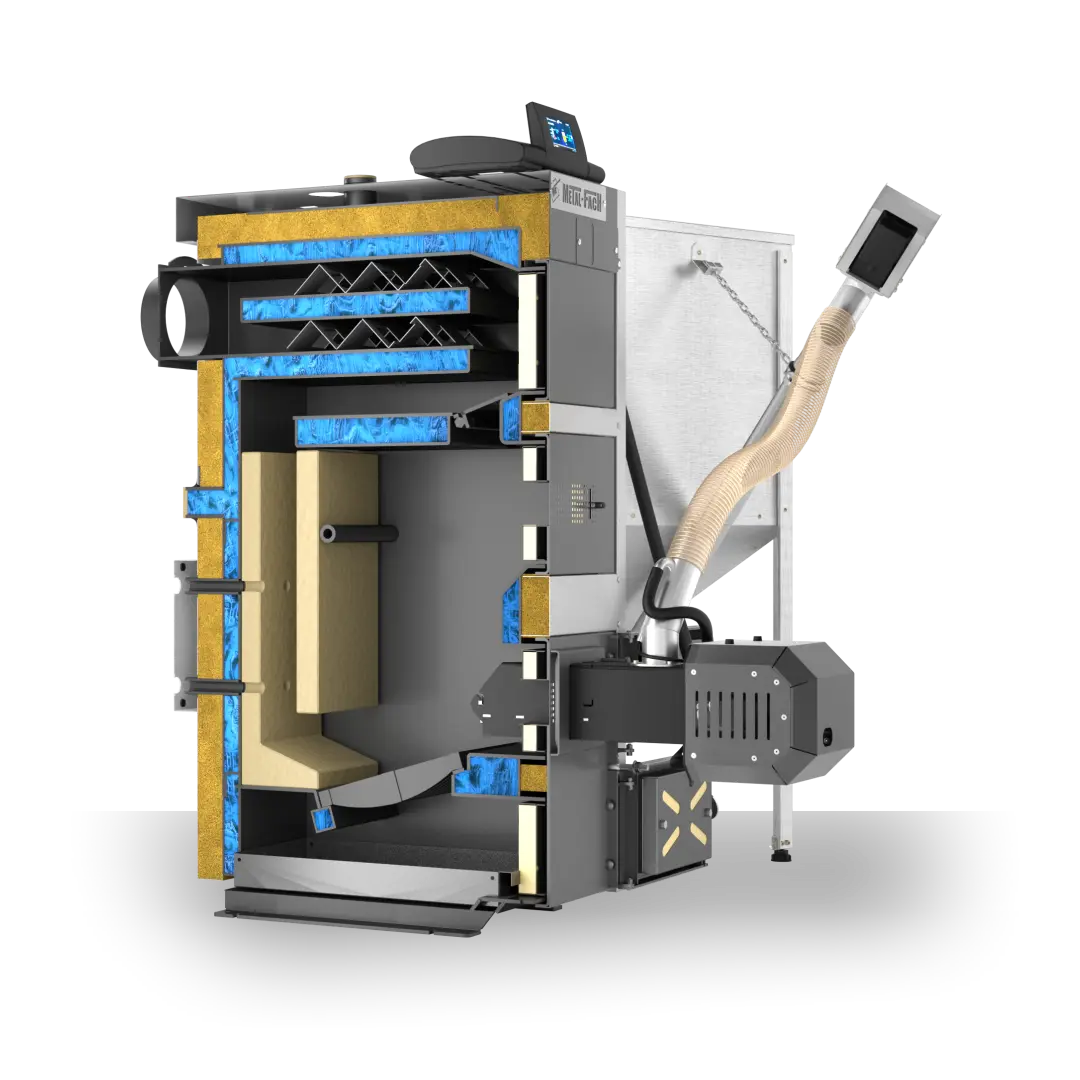

Construction of a central heating boiler
1
2
3
4
5
6
7
8
9
Automatic feeder
The automatic feeder feeding pellet fuel is an element that significantly increases the comfort of using the boiler. Its main features are:
- Maintenance-free fuel supply - pellets are automatically transported from the tank to the burner, eliminating the need for manual feeding.
- Quiet and smooth operation - solid construction and high-quality mechanisms ensure reliability and minimize noise.
- Time saving - the large capacity of the tank allows for long-term operation of the boiler without the need for frequent fuel refilling.
The automatic feeder guarantees the continuity of the combustion process and optimal boiler efficiency, with minimal involvement on the part of the user.
Exhaust gas temperature sensor
Together with the controller, the sensor monitors the exhaust gas temperature.
Swirlers
Swirlers are a solution that:
- Increases heat exchange efficiency - swirlers cause turbulence in exhaust gases, which improves heat transfer to the water jacket.
- Reduces fuel consumption - better heat exchange means lower energy losses and more economical operation of the boiler.
Horizontal convection channels | shelf
Efficient design adapted for automatic cleaning of the exchanger at the front. The construction of the boiler exchanger ensures high heat collection from the furnace.
Flue outlet at the back of the boiler
The boiler design has been designed in such a way that the flue outlet is located at the back of the boiler. The use of such a solution allows for the flue to be led directly to the chimney.
Exhaust fan - adjustable height
(Additional equipment)
The use of an exhaust fan with adjustable height brings a number of benefits:
The use of an exhaust fan with adjustable height brings a number of benefits:
- It allows you to adjust its outlets to the chimney installation in the building.
- It maintains the appropriate draft, ensures even fuel combustion and maximum efficiency.
- The fan prevents the backflow of flue gases, which increases the safety of using the boiler.
- The flue outlet at the back of the boiler changes position upwards after using the fan.
Thanks to this solution, the boiler can be effectively used in various installation conditions, ensuring optimal operation regardless of the specifics of the boiler room.
The air is regulated by means of an exhaust and blowing fan when using a boiler with a feeder.
Secondary and primary air intake
Air is sucked in through six holes to fully burn the fuel. The amount of secondary and primary air can be adjusted with sliders.
Air intakes must be completely closed when using a boiler with a feeder.
Smoke extraction flap
Allows for effective removal of smoke from the combustion chamber depending on the user's needs.
The smoke extraction flap must be completely closed when using a boiler with a feeder.
Ceramic plates
The use of ceramic plates in the combustion chamber improves the efficiency of the combustion process. The screens increase the temperature in the combustion chamber and stop particles floating in the furnace, burning them out. The thermal efficiency of the boiler increases, and the amount of compounds harmful to the environment is reduced to a minimum in the flue gases.
ATTENTION!
Any interference with the boiler’s design is prohibited and will void the warranty. Attempts to install additional grates or components that allow the combustion of fuels other than those specified by the manufacturer are prohibited.
Any interference with the boiler’s design is prohibited and will void the warranty. Attempts to install additional grates or components that allow the combustion of fuels other than those specified by the manufacturer are prohibited.
Ecology and savings
The use of wood and pellets as renewable fuels translates into care for the natural environment and reduction of harmful emissions into the atmosphere. Wood gasification allows for efficient use of the energy contained in biomass, and pellets – available in large quantities on the Polish and European markets – guarantee a stable and economical source of fuel.
Pellet burner
The SEMAX BASIC DUO 15-20kW boiler is equipped with a modern DW pellet burner. The burner has been designed for maximum combustion efficiency and minimizing harmful emissions. The DW burner is adapted to burn wood pellets compliant with the 303-5:2021-09 standard.
The DW burner uses an automatic ceramic igniter that offers:
- Fast ignition – the igniter reaches high temperatures in a short time.
- Long service life – high resistance to temperature and mechanical wear.
The automatic burner cleaning system ensures:
- Automatic removal of ash and deposits – the cleaning mechanism regularly removes accumulated deposits, ensuring optimal combustion conditions.
- Constant efficiency – thanks to self-cleaning, the burner maintains high efficiency throughout its service life.
- Minimal maintenance – the user does not have to manually clean the burner, which saves time and increases the comfort of use.
DW burner
Modern control
The intuitive PLATINUM PELLET controller enables precise management of the boiler operation. Optional accessories, such as the ecoNET300 internet module, and the ecoNET24 application provide real-time monitoring of device information and device control via the Internet.
Controls
PLATINUM PELLET Controller
The PLATINUM PELLET controller is the heart of the boiler management system. Equipped with an intuitive interface with a color touch screen, it allows easy and precise setting of the device’s operating parameters. The device supports:
- One mixing circuit C.O.1 with a room thermostat – allows for precise adjustment of the heating water temperature and rooms.
- Pump (C.W.U., C.O., additional) – manages additional heating zones such as underfloor heating or domestic hot water control.
- RTC clock – allows programming of the weekly boiler operation schedule.
- Weather control – allows programming of boiler operation modes depending on the weather or time of day.
- FuzzyLogic & PID – monitors the boiler operation, allows for current viewing of operating parameters and diagnostics of possible irregularities.
The controller is also compatible with the ecoNET300 internet module, which allows for remote control of the boiler using a smartphone or computer from anywhere.
Accessories for central heating boilers
Gain the opportunity to expand comfort, safety of use, as well as service and technical support in your METAL-FACH Heating Technology boiler. We offer our customers access to many additional elements that allow you to adapt our device even more to the needs of your home or boiler room. You can order them directly from us or at the point of purchase of the central heating boiler from our distributor. Adjust the heating of your home and the operation of the boiler to your needs.
Equipmentadditional
1
2
3
4
5
6
ecoNET300 Internet Module
The ecoNET300 Internet Module is a modern device that allows remote control of the boiler via the Internet. Thanks to the dedicated application, the user has full access to monitoring the boiler's operating parameters, temperature settings and the heating system's operating schedule.
Platinum Touch x40 Room Thermostat
The Platinum Touch x40 room thermostat is an elegant, touch-sensitive device that allows for precise temperature management in the home. Equipped with a large, clear display, it provides intuitive operation and weekly programming.
Platinum Touch x80 Room Thermostat
Platinum Touch x80 is an advanced version of the thermostat, offering even greater programming and control options for the heating system. It has a larger touch screen and additional functions, such as control of several heating circuits or the ability to integrate with smart home systems.
Platinum ecoSTER100 room thermostat
The Platinum ecoSTER100 thermostat allows remote control of the boiler from a convenient user interface. The device not only regulates the temperature in rooms, but also controls the operation of heating circuits and utility water.
ecoMAX 360B expansion module – Platinum B/C
The B/C expansion module enables control of additional heating circuits, pumps and actuators. It is an ideal solution for installations requiring flexible management of multiple heating zones in a building, providing full control over the heat in different rooms.
Lambda Sensor
The Lambda Sensor is an advanced device for controlling the combustion process, which automatically optimizes the amount of air supplied to the combustion chamber.
Technical data
Parameters
Parameter
Nominal thermal power [kW]
Primary fuel
Additional fuel
Water capacity [l]
Fuel tank capacity [l]
Fuel tank capacity [kg]
Boiler weight [kg]
SEMAX BASIC DUO 15
15
firewood, piece wood according to 303-5:2021-09
wood pellets according to 303-5:2021-09
71
230
138
342
SEMAX BASIC DUO 20
20
firewood, piece wood according to 303-5:2021-09
wood pellets according to 303-5:2021-09
77
230
138
390
More parameters can be found in the boiler manual DTR.
Emissions / Efficiency
Parametr
Seasonal emission of particulate matter [mg/m3]
Efficiency for nominal power [%]
Nominal emission of particulate matter [mg/m3]
Efficiency for minimum power [%]
Minimum emission of particulate matter [mg/m3]
SEMAX BASIC 15 (wood)
20
90
20
-
-
SEMAX BASIC DUO 15 (pellet)
17
91,0
13
89,0
18
SEMAX BASIC 20 (wood)
18
88,7
17
-
-
SEMAX BASIC DUO 20 (pellet)
19
91,0
16
90,0
20
Certificates
Parameter
Ecodesign (Eko Project)
Boiler Class
Energy Class
SEMAX BASIC 15 (wood)
Yes
5
A+
SEMAX BASIC DUO 15 (pellet)
Yes
5
A+
SEMAX BASIC 20 (wood)
Yes
5
A+
SEMAX BASIC DUO 20 (pellet)
Yes
5
A+

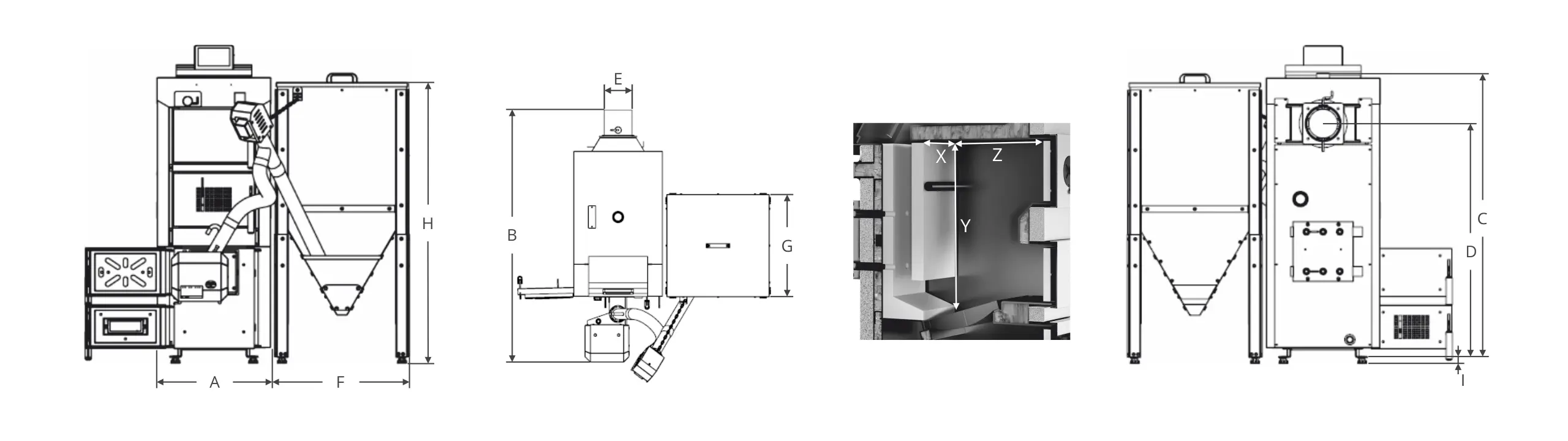

Dimensions
Dimensions
"A" Boiler width [mm]
"B" Boiler depth [mm]
"C" Boiler height [mm]
"D" Height to flue [mm]
"E" Flue diameter [mm]
"F" Tank width [mm]
"G" Tank depth [mm]
"H" Tank height [mm]
"I" Adjustment of feet height [mm]
SEMAX BASIC DUO 15
490
1352
1275
1050
159
605
605
1255
30
SEMAX BASIC DUO 20
520
1452
1275
1050
159
605
605
1255
30
More parameters can be found in the boiler manual DTR.
Documentation
Energy label
Product card 2015/1187
Product card 2015/1189
